hybrid stepper motor nema 23 closed loop motor closed loop stepper system
Our stepper motors are widely used in stage lighting control, security surveillance, home appliance, video equipment, laserworkstation, carving machine, automotive, office automation, smart toy, digital controlled machinery and medical instrument.
nema 34 easy-servo hybrid model :
| Series | Model | Step Angle | Current | Resistance | Inductance | Holding Torque | Length |
| A | ±10% Ω | ±20% mH | N.M | mm |

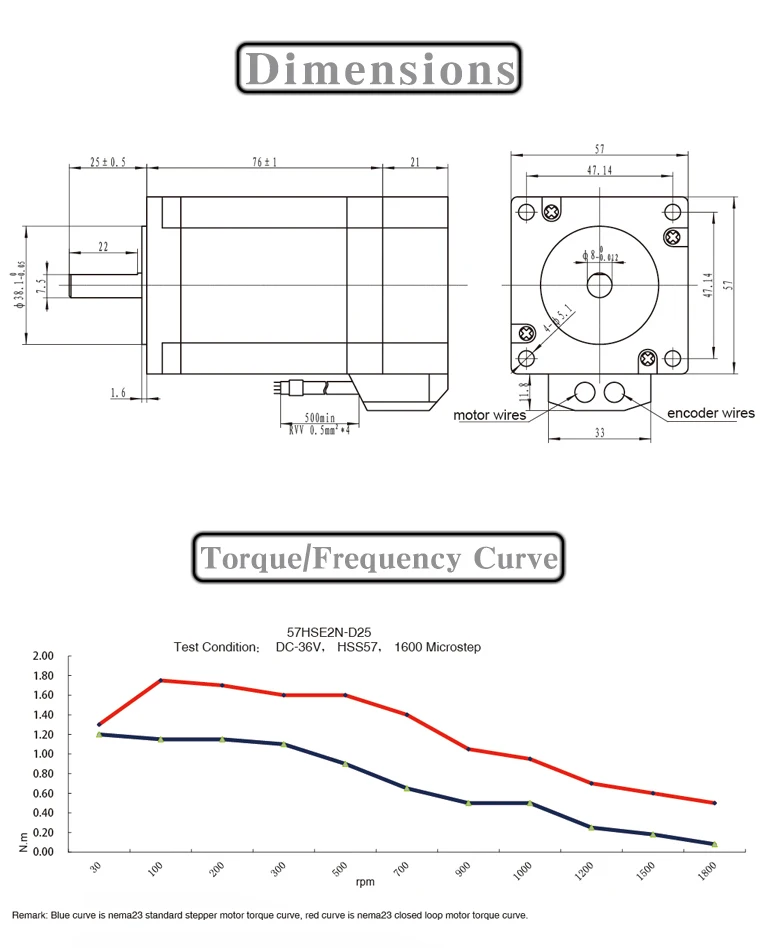

| nema23 | DW57HSE2N-D25 | 1.8° | 4 | 0.5 | 1.8 | 2 | 76 |
| nema24 | DW60HSE3N-D25 | 5 | 0.45 | 1.8 | 3 | 88 |
| nema34 | DW86HSE4N-BC38 | 6 | 0.45 | 3.7 | 4 | 82 |
| DW86HSE8N-BC38 | 0.44 | 3.7 | 8 | 118 |
| DW86HSE12N-BC38 | 0.45 | 5.2 | 12 | 156 |

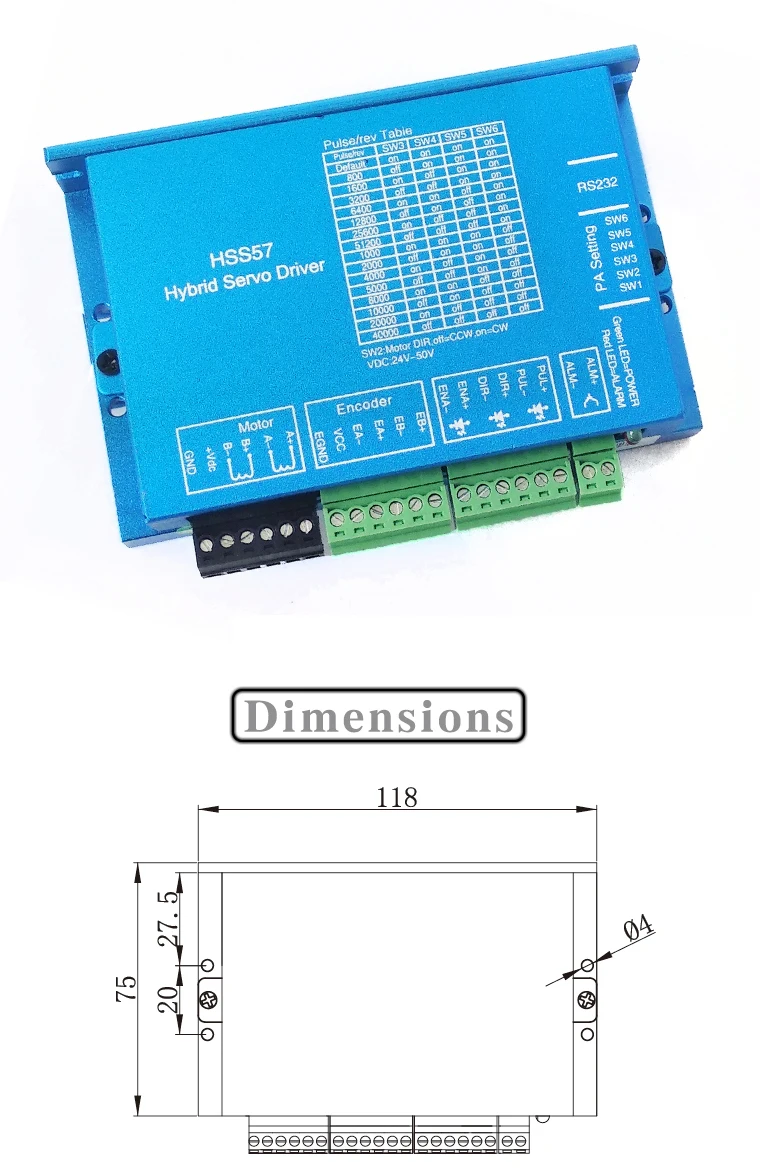

Close Loop Driver HSS57
Features
1. Position error correction and never lose steps.
2. Quick response and perfect acceleration, high torque at high speed.
3. Automatic current adjustment based on load, lower temperature rising
4. Over-current, over-voltage and position ultra difference protection function
5. Pulses response frequency can reach 200KHZ
6. 16 kinds microsteps choice, highest 51200 microsteps/rev.
7. Drive Nema 23 series2.0N.m closed loop stepper motor
8. Voltage range: DC24V-50V
Packing and shipment:
We have standard package for our products. We can also make it as per your special requirements.
Shipping can be arranged as per your requirements.
1. By sea
2. By Air
3. By Express, like DHL, Fedex, UPS etc.
Changzhou Jinsanshi mechatronics Co., Ltd., exporting stepper motors, servo motor,spindle motor,BLDC motor and their driver ,VFD. We spcialize in this field for many years, with the strength of high quality and competitive price in China.
We have our own techinical department and we developed various models of stepper motor, we also have complete drawings for our motors.
We can provide complete technical proposal for your project.
Any question about stepper motor, please contact me online or send me mail. We will reply you within 2 days!
